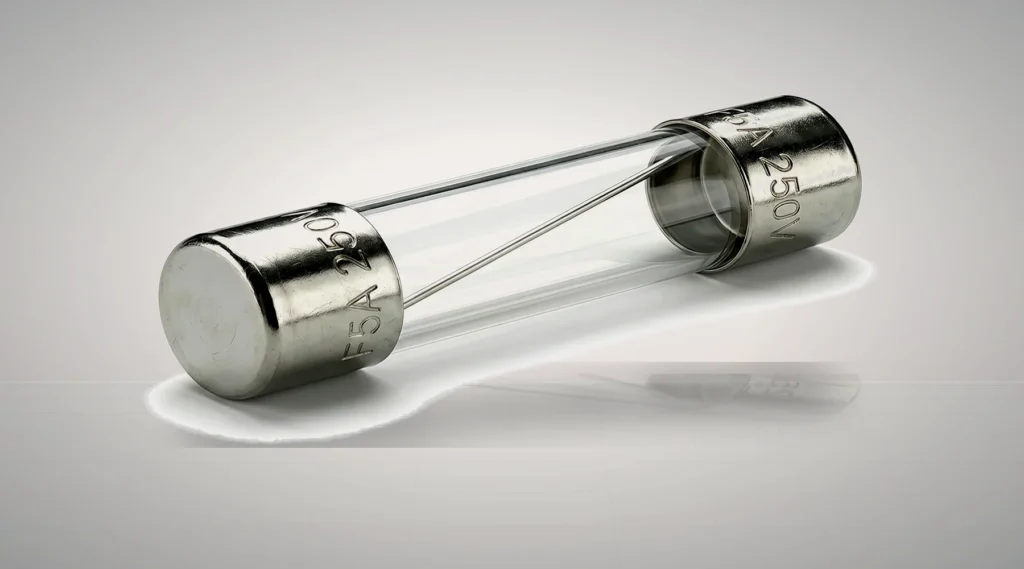

Macro close-up of a premium 6x30mm (3AG) Fast-Acting Glass Fuse featuring a visible diagonal silver wire construction. Manufactured by Global Fuse OEM (ISO 9001 Certified) for wholesale export to USA, India, and Netherlands.
SKU: GF630F-SERIES

6x30mm (3AG) Fast-Acting Glass Fuse Series (0.5A – 30A) – 250V OEM Grade

The GF630 Series is our 6x30mm (3AG) glass tube fuse line. Designed for electronic equipment and instruments requiring standard North American sizing and reliable protection. The transparent glass body allows for easy visual inspection of the fuse element status. Part Numbering System Example: GF630-F-10A-250V (Glass Fuse, 6x30mm, Fast, 10 Amp, 250V) Series Speed Ampere Voltage […]

Request quote for this series Email technical request
Rated Voltage 250V AC
Amp Range 100mA - 30A
Breaking Capacity 10kA @ 125V AC / 35A @ 250V AC
Certifications RoHS, REACH, ISO 9001, Designed to UL 248-14
Materials Glass Tube, Nickel Plated Brass Caps

The GF630 Series is our 6x30mm (3AG) glass tube fuse line. Designed for electronic equipment and instruments requiring standard North American sizing and reliable protection. The transparent glass body allows for easy visual inspection of the fuse element status.

Part Numbering System

Example: GF630-F-10A-250V (Glass Fuse, 6x30mm, Fast, 10 Amp, 250V)

Series Speed Ampere Voltage
GF630 F / T XXX 250V
